Desktop Assembly Instructions

The Desktop may be placed either underneath the loft or at the end of the loft.

It is attached to the second rung.

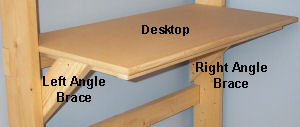

Installation  Attach the desktop to the second rung using 2-1/2" screws from underneath. Use the predrilled pilot holes on the rear desk support rail to connect the desk top to the rung. Keep in mind the desktop will need to be supported until the side braces are added.  Make sure the desktop is level.  Attach the Left Angle Brace to the desktop and to the leg as shown in the above picture.  Now attach the Right Angle Brace to the desktop and to the leg as shown in the above picture.

Included in this Shipment

(1) Desktop ¾” x 20” x 41" Twin 56" Full or 62" Queen

(1) Left Angle Brace 2x4 x 19”

(1) Right Angle Brace 2x4 x 19”

(16) 2-1/2” Drywall Screws
